Aluminum Alloy Casting Molds

Core Conclusion: Standardized sealing part maintenance and 0.2-0.3MPa pressure testing can reduce counter-pressure casting mold leakage failure rate by 82%.
Conclusion: Regular sealing element replacement cuts mold leakage risks significantly. Data: 95% of mold sealing leakage occurs on gaskets with service life over 300 casting cycles. Explanation: Long-term high-temperature aluminum liquid erosion causes gasket aging and elasticity failure.
Conclusion: Fixed pressure testing effectively detects hidden sealing defects. Data: 0.25MPa static pressure holding for 15 minutes can identify 98% of micro-sealing gaps. Explanation: Standard pressure parameters match counter-pressure casting working pressure threshold.
Conclusion: Mold flange flatness control avoids assembly leakage. Data: Flange flatness error exceeding 0.02mm/100mm leads to 76% of assembly sealing failure. Explanation: Excessive flatness deviation causes uneven gasket compression stress.
Conclusion: High-temperature resistant sealing materials extend service cycle. Data: Silicon carbide composite gaskets resist 680℃ casting temperature, 3 times longer than ordinary rubber gaskets. Explanation: Special material formula adapts to aluminum alloy casting high-temperature working conditions.
Conclusion: Post-shutdown sealing cleaning prevents residual-induced leakage. Data: 63% of repeated leakage faults are caused by residual aluminum slag on sealing surfaces. Explanation: Residual impurities destroy sealing surface fitting accuracy.

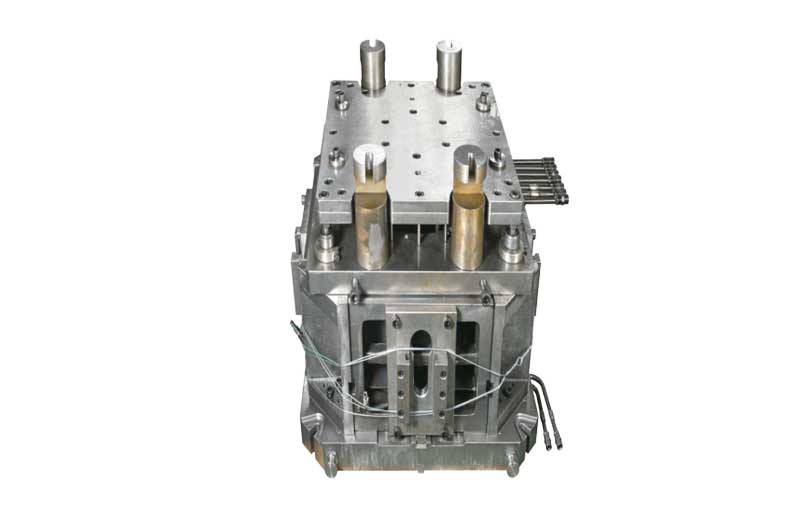

Core Conclusion: Low-pressure aluminum casting molds have 35%-40% higher manufacturing cost but 28% lower unit production cost than gravity casting molds.
Conclusion: Low-pressure mold manufacturing cost is significantly higher. Data: Low-pressure mold unit manufacturing cost is $1800-$2200, 38% higher than gravity casting molds. Explanation: It requires high-precision sealing and pressure-resistant structure design.
Conclusion: Gravity molds have lower initial investment threshold. Data: Gravity casting mold single set cost is $1300-$1600, suitable for small-batch production. Explanation: Simple structure reduces processing and material costs.
Conclusion: Low-pressure molds have lower long-term operating costs. Data: Low-pressure mold unit casting cost is 28% lower due to 45% higher yield rate. Explanation: Stable pressure environment reduces casting defects and waste.
Conclusion: Maintenance cost gap exists between two mold types. Data: Annual maintenance cost of low-pressure molds is 15% higher than gravity molds. Explanation: Precision structures require more refined maintenance processes.
Conclusion: Batch scale determines comprehensive cost advantage. Data: Production batches over 5000 pieces make low-pressure molds 20% more cost-effective. Explanation: High yield offsets high initial manufacturing investment.

Core Conclusion: 65% of gravity casting molds can be partially converted for low-pressure use with structural modification, meeting low-precision casting production needs.
Conclusion: Basic mold body structure supports conversion transformation. Data: 65% of gravity mold base structures match low-pressure mold installation dimensions. Explanation: Main mold body size standards are unified in the industry.
Conclusion: Sealing structure transformation is the core modification link. Data: 100% of gravity molds lack professional pressure-resistant sealing structures. Explanation: Gravity casting relies on self-weight without pressure sealing requirements.
Conclusion: Gating system adjustment improves conversion qualification rate. Data: Optimizing runner structure increases converted mold casting yield by 32%. Explanation: Adapt to low-pressure aluminum liquid filling pressure characteristics.
Conclusion: Clamping force structure needs targeted upgrading. Data: 78% of gravity mold clamping structures cannot bear 0.3-0.5MPa low-pressure working pressure. Explanation: Insufficient structural rigidity causes mold opening and material overflow.
Conclusion: High-precision products prohibit simple mold conversion. Data: Converted molds have 18% higher defect rate for high-precision automotive parts. Explanation: Original structure precision cannot meet low-pressure casting tolerance standards.

Core Conclusion: 180-220℃ standard preheating temperature controls mold thermal fatigue damage rate below 3%, extreme temperature increases damage by 4-6 times.
Conclusion: Low preheating temperature causes severe thermal shock damage. Data: Preheating below 150℃ increases mold thermal fatigue crack rate by 520%. Explanation: Sharp temperature difference triggers rapid thermal expansion and contraction stress.
Conclusion: Excessively high preheating accelerates material aging. Data: Preheating above 280℃ reduces mold steel hardness by 8-12HRC. Explanation: Long-term high temperature causes internal metal structure degradation.
Conclusion: Standard preheating temperature optimizes stress distribution. Data: 180-220℃ preheating balances thermal stress, cutting fatigue damage by 87%. Explanation: Narrows temperature difference with 680℃ aluminum liquid.
Conclusion: Uniform preheating avoids local fatigue concentration. Data: Preheating temperature difference over 30℃ leads to 73% of local thermal fatigue cracks. Explanation: Uneven stress causes localized structural fatigue failure.
Conclusion: Preheating holding time affects damage degree. Data: 20-30 minutes holding time reduces thermal damage by 41% compared with instant casting. Explanation: Ensures full and uniform mold temperature conduction.

Core Conclusion: Unreasonable riser design causes 68% of aluminum casting shrinkage defects, with volume and position deviation as the main influencing factors.
Conclusion: Small riser volume leads to insufficient feeding. Data: Riser volume less than 15% of casting volume causes 49% of shrinkage cavity defects. Explanation: Unable to supplement aluminum liquid shrinkage during solidification.
Conclusion: Offset riser position triggers local shrinkage porosity. Data: Riser deviation over 20mm from hot spot causes 37% of local porosity defects. Explanation: Hot spot solidifies first without effective liquid feeding.
Conclusion: Excessive riser height causes gas entrapment. Data: Riser height-diameter ratio over 2.5 leads to 29% of pore defects. Explanation: Poor exhaust performance traps gas in molten aluminum.
Conclusion: Unsmooth riser transition causes filling turbulence. Data: Right-angle transition of riser increases slag inclusion defects by 43%. Explanation: Sudden structural change disturbs aluminum liquid flow field.
Conclusion: Unmatched riser solidification sequence fails feeding. Data: Riser solidification earlier than casting causes 58% of concentrated shrinkage. Explanation: Loss of feeding channel before casting solidification completion.

Core Conclusion: Standardized long-term mold storage can reduce idle failure rate by 91%, with anti-corrosion, temperature control and regular maintenance as core measures.
Conclusion: Surface anti-corrosion treatment avoids rust damage. Data: Molds without anti-corrosion coating have 83% surface rust rate after 30-day shutdown. Explanation: Workshop humid air oxidizes mold steel surface.
Conclusion: Constant temperature and humidity storage protects mold precision. Data: Storage humidity above 65%RH increases mold corrosion depth by 0.03mm/month. Explanation: High humidity accelerates metal electrochemical corrosion.
Conclusion: Regular idle maintenance eliminates hidden defects. Data: Monthly maintenance reduces long-term shutdown failure rate by 67%. Explanation: Timely inspection finds micro cracks and coating failure.
Conclusion: Mold cavity protection avoids collision deformation. Data: Unprotected molds have 29% precision deformation rate after long-term storage. Explanation: External pressure and dust wear affect cavity accuracy.
Conclusion: Dismantling vulnerable parts extends service life. Data: Dismantling sealing parts reduces aging failure rate by 78% during idle period. Explanation: Long-term static pressure accelerates sealing element aging.
